美制ORFS外螺纹平面O型圈密封
| Code PART NO. |

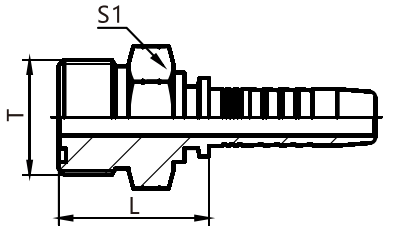

Thread T | Hose Bore | Dimensions | ||
| THREAD T | Nominal Inner Diameter DN | DASH | L | 1 | |
| 14211-04-04 14211-06-04 14211-06-06 14211-08-06 14211-08-08 14211-08-10 14211-10-08 14211-10-10 14211-12-08 14211-12-10 14211-12-12 14211-16-12 14211-16-16 14211-20-20 14211-24-24 |
9/16″X18 11/16X16 11/16″X16 13/16″X16 13/16″ X16 13/16″X16 1″X14 1″X14 1.3/16″X12 1.3/16″X12 1.3/16″X12 1.7/16″X12 1.7/16″X12 1.11/16″X12 2″X12 |
6 6 10 10 13 16 13 16 13 16 19 19 25 32 38 |
4 4 6 6 8 10 8 10 8 10 12 12 16 20 24 |
22.5 24 24 27.5 28.5 28.5 32.5 33.5 35.5 36 36.5 37 38.5 41.5 43 |
17 19 19 22 22 22 27 27 32 32 32 41 41 46 55 |
注:1、 表中代号用于编织软管。2、如需用于缠绕软管代号改为14212-XX-XX。
