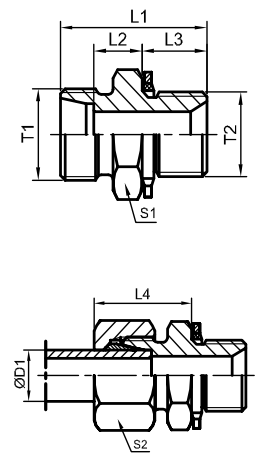

英管螺纹60°密封或组合垫密封两用柱端
| PART NO | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | ||||||
| T1 | T2 | D1 | L1 | L2 | L3 | L4 | 1 | S2 | g/pc | (bar) | |
| 1CB-12-02 1CB-12-04 1CB-14-02 1CB-14-04 1CB-14-06 1CB-16-04 1CB-16-06 1CB-16-08 1CB-18-04 1CB-18-06 1CB-18-08 1CB-18-12 1CB-22-06 1CB-22-08 1CB-26-08 1CB-26-12 1CB-30-12 1CB-36-16 1CB-45-20 1CB-52-24 1DB-14-04 1DB-16-04 1DB-16-06 1DB-18-04 1DB-18-06 1DB-18-08 1DB-20-04 1DB-20-06 1DB-20-08 1DB-22-08 1DB-24-06 1DB-24-08 1DB-24-12 1DB-30-12 1DB-36-08 1DB-36-12 1DB-36-16 1DB-42-20 1DB-52-24 |
M12 1.5 M12 1.5 M14 1.5 M14 1.5 M14 1.5 M16x1.5 M16 1.5 M16x1.5 M18 1.5 M18 1.5 M18 1.5 M18 1.5 M22 1.5 M22 1.5 M26 1.5 M26 1.5 M30 2 M36 2 M45 2 M52 2 M14 1.5 M16x1.5 M16x1.5 M18x1.5 M18 1.5 M18 1.5 M20 1.5 M20 1.5 M20 1.5 M22 1.5 M24 1.5 M24 1.5 M24 1.5 M30 2 M36 2 M36 2 M36 2 M42 2 M52 2 |
G1/8*X28 G1/4 19 G1/8X28 G1/4X19 G3/8-X19 G1/4X19 G3/8·X19 G1/2- 14 G1/4X19 G3/8X19 G1/2X14 G3/4X14 G3/8·x19 G1/2×14 G1/2 14 G3/4X14 G3/4X14 G1x11 G1.1/4X11 G1.1/2×11 G1/4X19 G1/4X19 G3/8*X19 G1/4X19 G3/8*X19 G1/2’x14 G1/4 19 G3/8*X19 G1/2×14 G1/2×14 G3/8X19 G1/2×14 G3/4X14 G3/4X14 G1/2X14 G3/4X14 G1·x11 G1.1/4X11 G1.1/2X11 |
6 6 8 8 8 10 10 10 12 12 12 12 15 15 18 18 22 28 35 42 6 8 8 10 10 10 12 12 12 14 16 16 16 20 25 25 25 30 38 |
25 28 25 28 29.5 29 30.5 34 29 30.5 34 36.5 32 35.5 35 37.5 39.5 42.5 46.5 50 32 32 35.5 32 35.5 38 34 35.5 38 40 37.5 40 44.5 46.5 47 49.5 52.5 55.5 62 |
10 12 10 12 13.5 12 13.5 16 12 13.5 16 18.5 13.5 16 16 18.5 18.5 20.5 20.5 23 12 12 13.5 12 13.5 16 12 13.5 16 16 13.5 16 18.5 18.5 16 18.5 20.5 20.5 23 |
108 11 8 11 12 11 12 14 11 12 14 16 12 14 14 16 16 19 20 22 11 11 12 11 12 14 11 12 14 14 12 14 16 16 14 16 19 20 22 |
23 24 23 24 24 25 25 26 25 25 26 26 26 27 28 28 30 31 37 39 28 28 32 29 31 31 31 31 31 34 34 34 36 39 43 43 44 48 54 |
14 19 14 19 22 19 22 27 19 22 27 32 24 27 27 32 32 41 50 55 19 19 22 19 22 27 22 22 27 27 27 27 32 32 41 41 41 50 55 |
14 14 17 17 17 19 19 19 22 22 22 22 27 27 32 32 36 41 50 60 17 19 19 22 22 22 24 24 24 27 30 30 30 36 46 46 46 50 60 |
12 28 16 27 44 29 42 70 30 40 66 117 53 71 70 118 101 168 270 340 35 40 56 41 54 95 60 62 98 95 82 90 150 147 226 264 400 415 560 |
500 500 500 500 420 500 420 400 400 420 400 250 400 400 400 250 250 250 250 250 800 800 800 400 800 630 630 630 630 630 630 630 420 420 420 420 420 420 420 |
注:如需带卡套及卡套螺母整套订货，则请在代号后加“RN”，如1CB-30-12/RN
