公制外螺纹60°锥密封或组合垫密封两用柱端

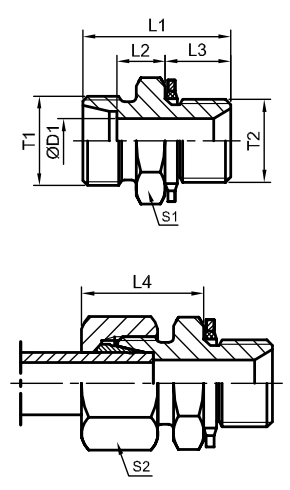

| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | ||||||
| T1 | T2 | D1 | L1 | L2 | L3 | L4 | 1 | S2 | g/pc | (bar) | ||
| 1CM-12-10 1CM-14-12 1CM-14-18 1CM-16-14 1CM-16 1CM-16-18 1CM-16-22 1CM-18-14 1CM-18-16 1CM-18 1CM-18-22 1CM-22-16 1CM-22-18 1CM-22 1CM-26-18 1CM-26-22 1CM-30-22 1CM-30-26 1CM-30-27 1CM-36-33 1CM-45-42 1CM-52-48 1DM-14-12 1DM-16-14 1DM-18-16 1DM-20-18 1DM-20-22 1DM-22-20 1DM-24-18 1DM-24-22 1DM-30-27 1DM-36-33 1DM-42 1DM-52-48 |
M12 1.5 M14 1.5 M14 1.5 M16x1.5 M16x1.5 M16x1.5 M16 1.5 M18 1.5 M18 1.5 M18 1.5 M18x1.5 M22 1.5 M22 1.5 M22 1.5 M26x1.5 M26 1.5 M30 2 M30 2 M30 2 M36x2 M45 2 M52 2 M14 1.5 M16 1.5 M18 1.5 M20 1.5 M20x1.5 M22 1.5 M24 1.5 M24 1.5 M30 2 M36 2 M42 2 M52 2 |
M10x1 M12 1.5 M18 1.5 M14 1.5 M16 1.5 |M18x1.5 M22 1.5 M14 1.5 M16 1.5 M18 1.5 M22 1.5 M16 1.5 M18 1.5 M22 1.5 |M18x1.5 M22 1.5 M22 1.5 M26x1.5 M27 2 M33 2 M42 2 M48 2 M12 1.5 M14 1.5 M16 1.5 M18 1.5 M22 1.5 M20x1.5 M18 1.5 M22 1.5 M27 2 M33 2 M42 2 M48 2 |
6 8 8 10 10 10 10 12 12 12 12 15 15 15 18 18 22 22 22 28 35 42 6 8 10 12 12 14 16 16 20 25 30 38 |
23.5 29 30.5 30 31.5 31.5 35 30 31.5 31.5 35 32 32.5 36 33.5 36 38 40 42 43 48 52 32 34 34.5 36.5 39 41 38.5 41 47 53 57 64 |
8.5 10 11.5 11 12.5 12.5 14 11 12.5 12.5 14 13 13.5 15 14 14.5 16.5 16.5 18.5 17.5 17.5 19 13 15 15 17 17.5 19 18 18.5 20.5 23 23.5 26 |
8 10 12 11 12 12 14 11 12 12 14 12 12 14 12 14 14 16 16 18 20 22 10 11 12 12 14 14 12 14 16 18 20 22 |
23 25 26 26 24 27 29 26 27 27 29 28 29 30 30 31 33 33 35 34 39 42 28 30 31 33 34 37 36 37 42 47 50 57 |
14 17 24 19 22 24 27 19 22 24 27 24 24 27 27 27 32 32 32 41 50 55 17 19 22 24 27 27 27 27 32 41 50 55 |
14 17 17 19 19 19 19 22 22 22 22 27 27 27 32 32 36 36 36 41 50 60 17 19 22 24 24 27 30 30 36 46 50 60 |
13 22 23 29 39 49 79 30 39 46 73 50 63 75 67 72 94 100 164 275 350 355 41 53 59 70 100 96 86 93 147 260 415 560 |
500 500 500 500 420 400 400 400 400 400 400 400 400 400 400 400 250 250 250 250 250 250 800 800 800 630 630 630 630 800 420 420 420 420 |
L L L L L L L L L L L L L L L L L L L L L L S S S S S S S S S S S S |
注:如需带卡套和卡套螺母整套订货，则请在代号后面加 “RN” 1CM-30-27/RN.
